Panoramic Suspended Aluminium Sliding Sash Windows

Product configuration

• Strictly selected T5-6063 original titanium magnesium aluminum alloy profile

• Strictly selected automotive-grade Xinyi original glass (5mm+20A+5mm)

• Double-row eight-wheel, windproof swing wheel, smooth push and pull, durable and sturdy

• Narrow side hook automatic lock to protect children

• 304 stainless steel track, double track load-bearing, anti-derailment, smooth push and pull, light and noiseless

• Strictly selected high-quality siliconized wool strips, longer service life and more durable

• Strictly selected brand PA66 insulation strips, durable and heat-insulating

• Hidden drainage structure, effectively prevents rainwater backflow


• Square steel can be added to the middle column to effectively resist typhoons, as stable as Mount Tai

• Embedded frame fan design, more sealed between the fan frames, better waterproof and sound insulation, wider field of view

• Optional clothes drying rack, atmosphere light strip, landscape handrail, electric push and pull

• Can be used as a suspended track




• Product Parameters

• Main wall thickness: 3.0mm	Outer frame wall area: 148mmm
  Visible surface of glass sash: 38.5mm	Insulating glass: 5mm+20A+5mm
  Landscape handrail width: 91mm	Electric landscape handrail width: 100mm

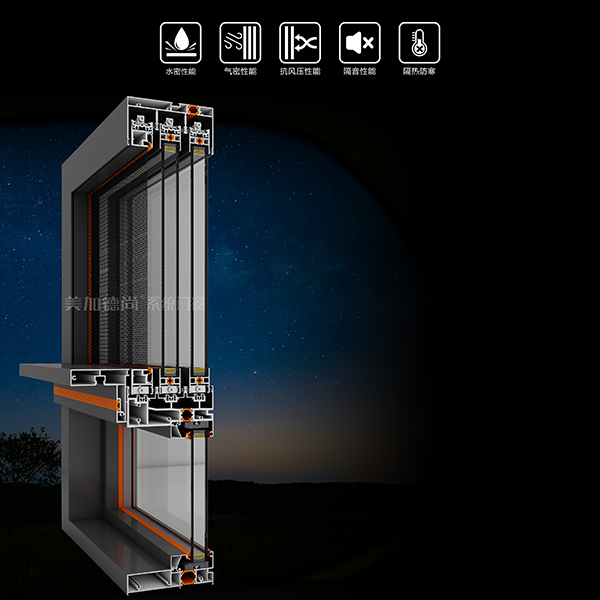

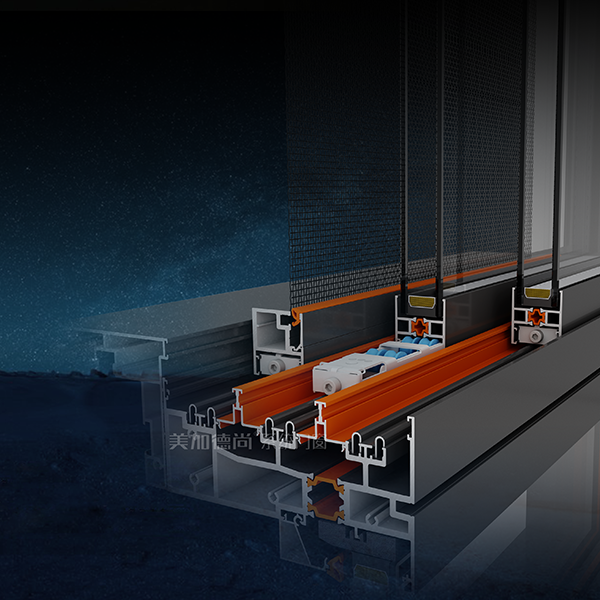

Six-track double-row pulley structure

• Double hung sliding windows are designed to be stable and windproof, offering smooth and quiet operation. Their strong and durable construction ensures long-lasting performance, even in challenging weather conditions.

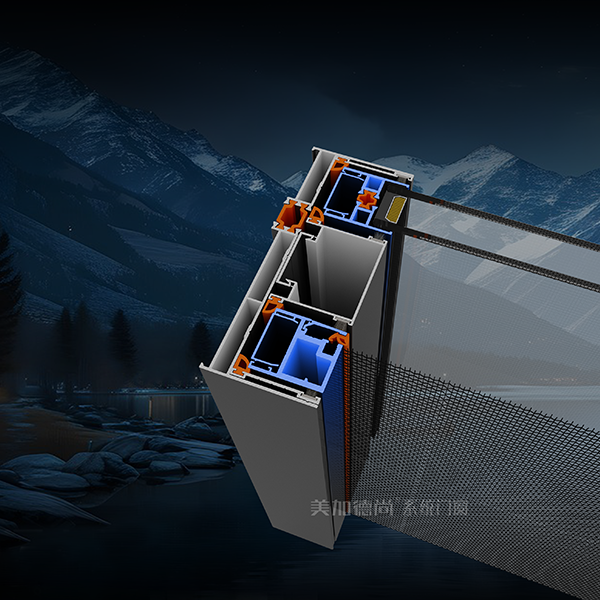

Embedded frame

• Aluminium sliding sash windows feature an embedded frame fan design, providing better sealing, enhanced waterproofing, and improved sound insulation between the fan and frame. This design also offers a wider field of view, combining functionality with aesthetic appeal

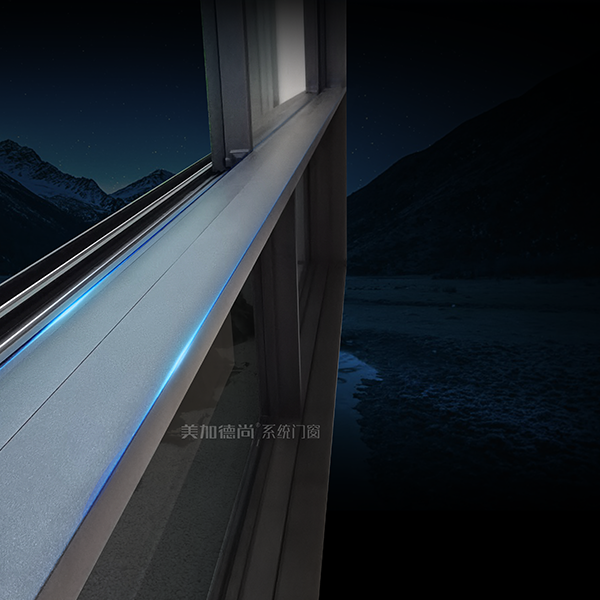

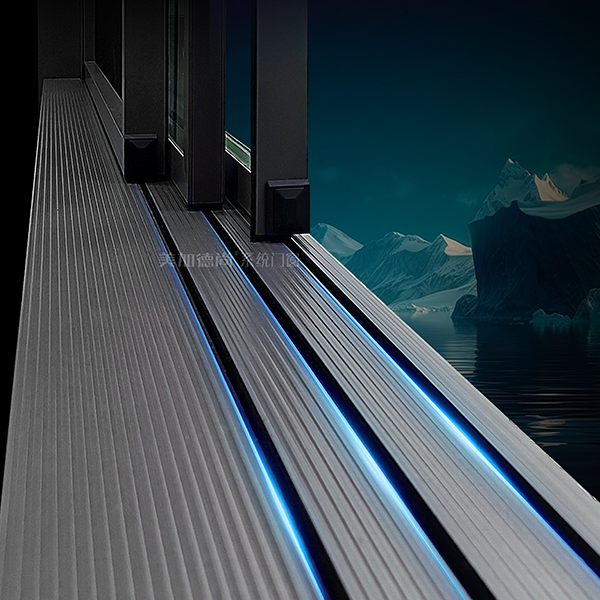

Large landscape handrail

• With sliding storm windows in place, you can enjoy the view from your window while sipping a cup of hot tea and placing green plants nearby. It’s a simple yet perfect way to embrace comfort and tranquility in your daily life.

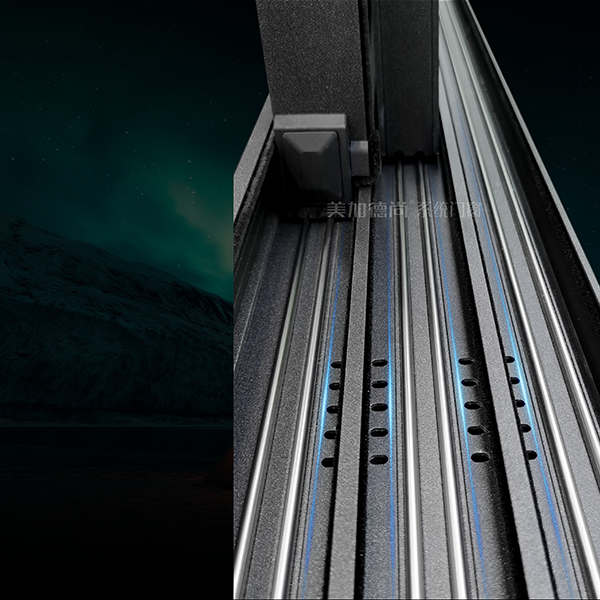

Invisible drainage

• The center column has invisible drainage, which is beautiful and prevents rainwater from flowing back.




Optional suspended track

• Suspended track, silent and makes opening and closing windows become a life aesthetic. Anti-slip design, safe and stable

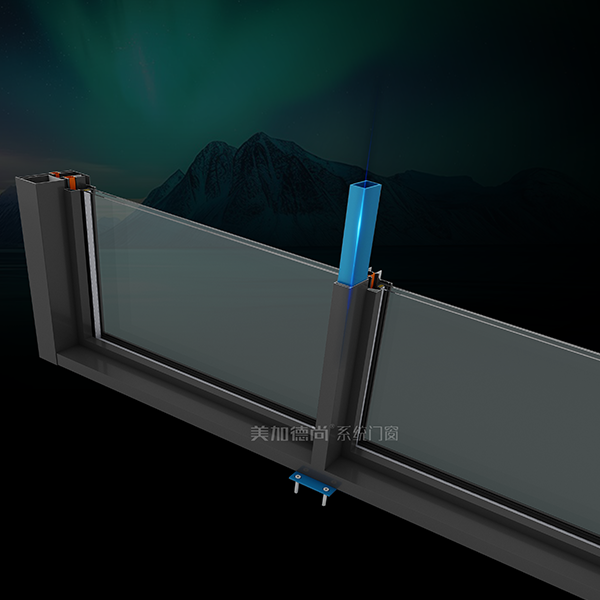

Square steel can be added to the middle column

• For large glass or offshore typhoon-prone areas, square steel can be added to the middle column to effectively prevent wind and provide safety and stability

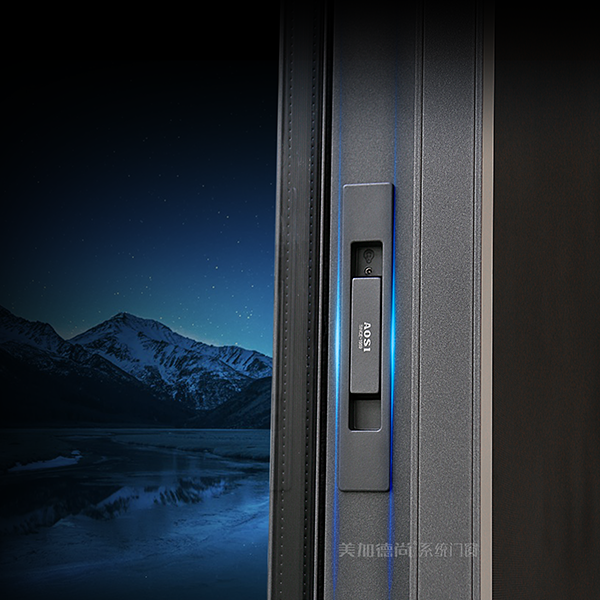

Narrow side hook lock

When closing the window sash, it will automatically lock safely and reliably, effectively protecting children
