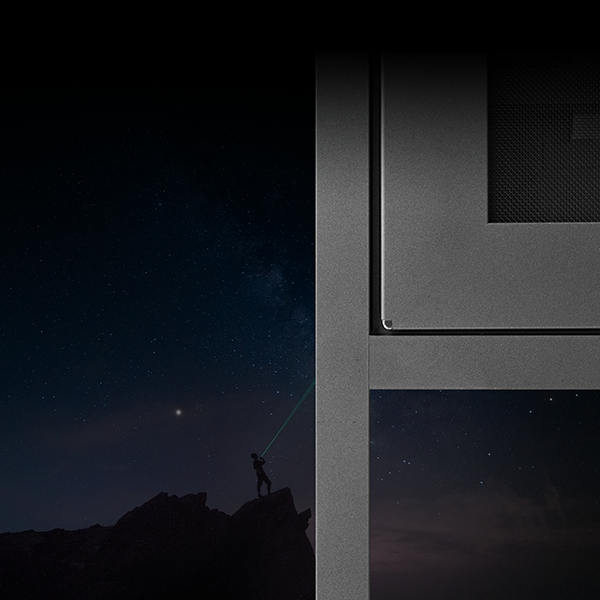

Screen integrated casement window system MO5
Specifications
| Main wall thickness | 1.8mm |
| Glass configuration | 5mm+20A+5mm |
| Glass sash glide track | 75mm |
| Screen Sash Glide Track | 5lmm |
| Wall-mounted frame | 105mm |
| Hardware System | Reno no base handle (black), German Reno hardware system |
| Mesh Configuration | Black stainless steel high-definition mesh, optional foldable mesh |
| Pressed-line configuration | Standard curtain wall pressure line |
| Large glass selection | Large glass curtain wall type pressure line |

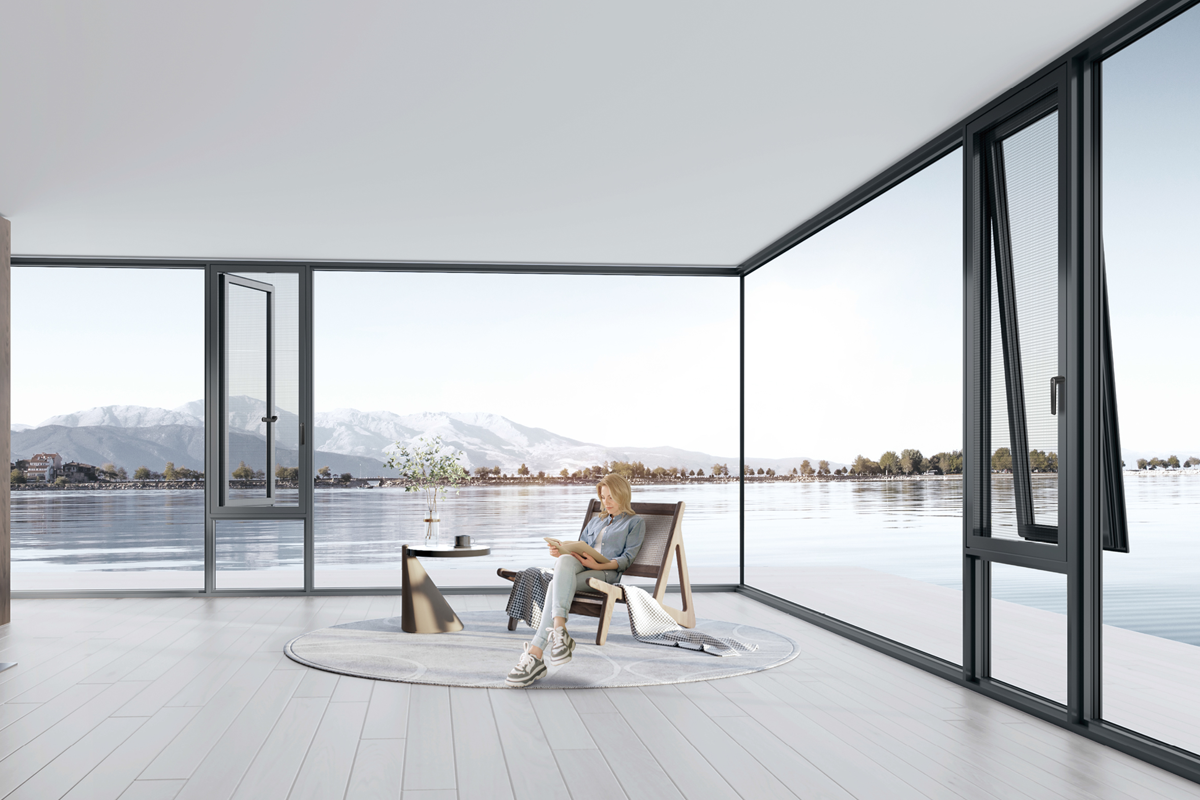

Aluminum casement windows combine folding screens, inward-opening mosquito nets, sound insulation, German hardware, and advanced surface treatment technologies.
1. Hinges of the aluminum casement windows
The hinges of the casement window double glazing are crafted from 304 stainless steel, providing exceptional rust resistance, effortless maintenance, and minimal upkeep requirements, thereby ensuring a durable and reliable window operation mechanism throughout its lifespan
2. Shutters of aluminum casement windows
Two options are available: magnetically controlled shutters or automatic shutters built into the glass hollow.
The window sash can be equipped with magnetically controlled shutters or automatic shutters.
3. Hardware handles of aluminum casement windows
Hoppe brand is standard. Available options include VBH.
Smooth operation, ergonomic comfort and durable performance.
4. Glass cavity structure of aluminum casement windows
Standard double-layered tempered glass of soundproof casement windows (5mm + 20A + 5mm) provides dual sound and thermal insulation, enhanced sealing, and reduced acoustic resonance for superior noise reduction
5. Screen of aluminum casement windows
Residential casement windows with optional built-in insect screens (available in 304 stainless steel or 316 stainless steel) or foldable screens.

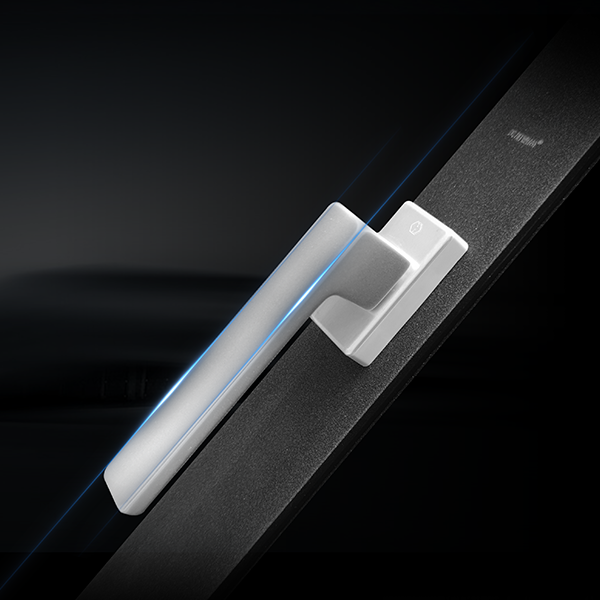

German HOPPE handle
Its ergonomic and smooth line design not only makes the grip comfortable, but also allows the window to open smoothly and without hindrance.

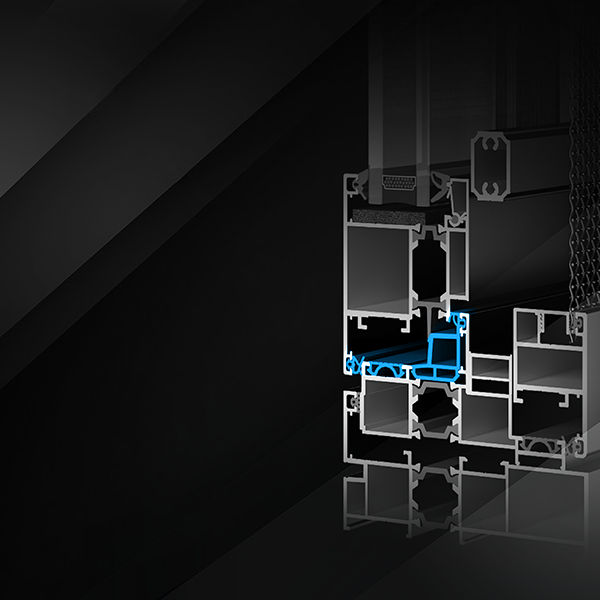

3-layer airtightness
The three-layer sealing structure of the opening fan adopts Jiangyin Haida EPDM foam composite strip, which has super waterproof, dustproof and heat-insulating properties

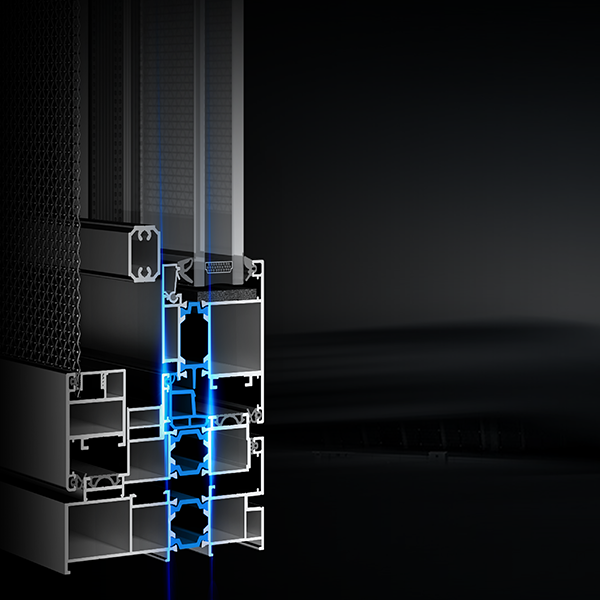

Vertical isotherms
Vertical isotherms form a hot and cold bridge in the middle of the aluminum material, effectively blocking the heat transfer between indoor and outdoor areas, making the house more energy-efficient and reducing the impact of outdoor temperature on indoor areas. At the same time, it enhances sound insulation and makes the living experience more comfortable.
26mm ultra-narrow center column
Extremely narrow design, the width of the window center column is only 26mm, which provides a wider field of view

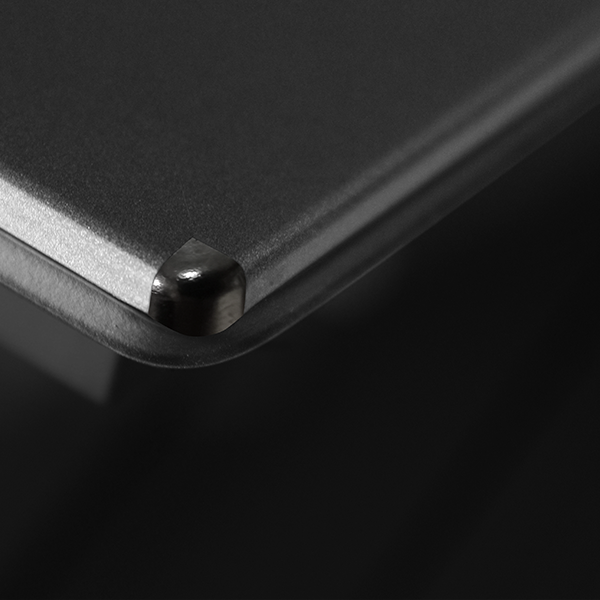

R4 glazed black alloy corner guard
The window sash corner protection design is invisible in color and has a smooth structure to avoid scratches caused by accidental bumps, which is both safe and beautiful

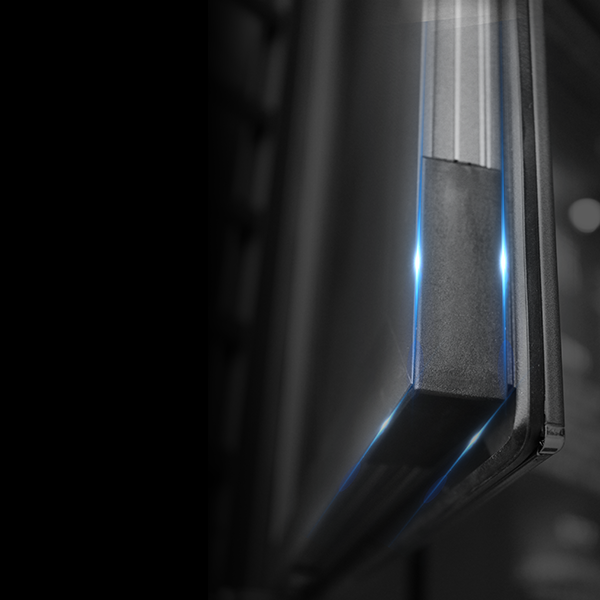

Inner corner protection
The inner corners are made of EPDM material to tightly wrap the sharp inner corners of the window sash to prevent collision and scratches. It is both quiet and safe

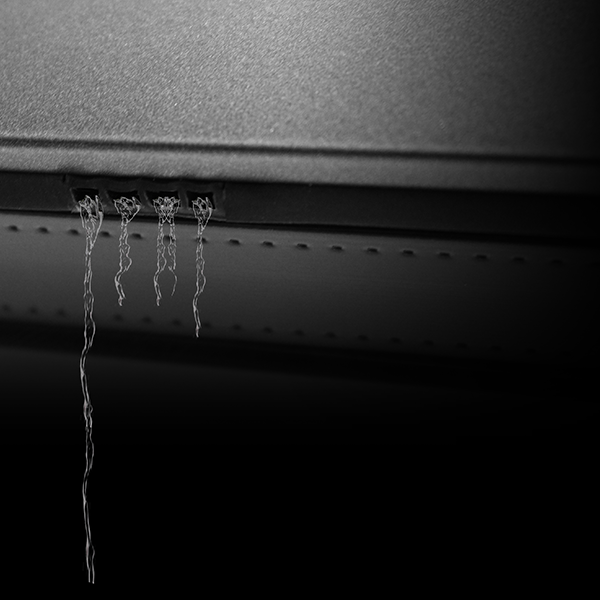

Concealed floor drain
The drainage hole is highly concealed, has a large drainage capacity, is anti-seepage, prevents rainwater from penetrating and backflowing, prevents wind whistling, and prevents mosquitoes

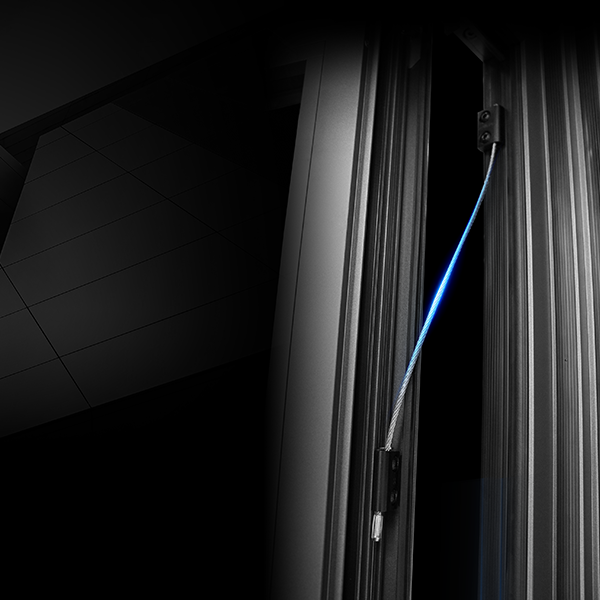

304 stainless steel anti-fall chain
304 stainless steel anti-fall chain as standard, double protection, safe and worry-free
Curtain wall type pressure line
Minimal pressure line, picturesque scenery, full view
Straight edge without joints moisture-proof aluminum strip
Insulating glass black moisture-proof aluminum strip straight edge without joints, beautiful and generous
