M16pro integrated casement window system
Description of the flush aluminium windows
Function: The glass sash can be opened outwards and the screen can be opened inwards; the glass sash can be opened inwards and the screen can be opened outwards; the glass sash can be opened inwards and tilted inwards, and the screen can be opened outwards; the glass sash can be opened outwards without screens.
Application of the flush aluminium windows : It can be fixed on the left or opened as a guardrail.
Window hardware ：the hardware for the tempered glass casement window comes standard with the VBH brand
Hinge ：Insulated casement Windows comes standard with German G-U hinges, which open inward and tilt inward; The internal window adopts a KeNeng hinge.
The insulated casement windows can be made into window-and-door :
It can be made into window-and-door, can be made into an outward-opening door with a window screen, can be made into a double-opening door, and can be made into a mother-and-child outward-opening door, and can be equipped with door hardware handles of VBH brand as standard.
Screen :Optional inward-opening screen (stainless steel 304 and stainless steel 316 materials are available).
Venetian blinds:Two options are available: glass hollow with built-in magnetic blinds.
Glass of the double glazed casement windows:
Standard tempered ultra-clear glass , double-layer sound insulation and heat insulation, better sealing. Reduces acoustic resonance and has excellent sound insulation effect.
Specification：
| Main Wall Thickness | 2.3mm |
| Glass Configuration | 5mm+20A+5mm |
| Glass Sash Flat Section | 75mm |
| Screen Sash Flat Section | 51mm |
| Frame Occupies Wall | 116mm |
| Wire Pressing Configuration | Standard configuration: oblique pressure line. Optional configuration: large pressure line, step pressure line, outer arc pressure line. |

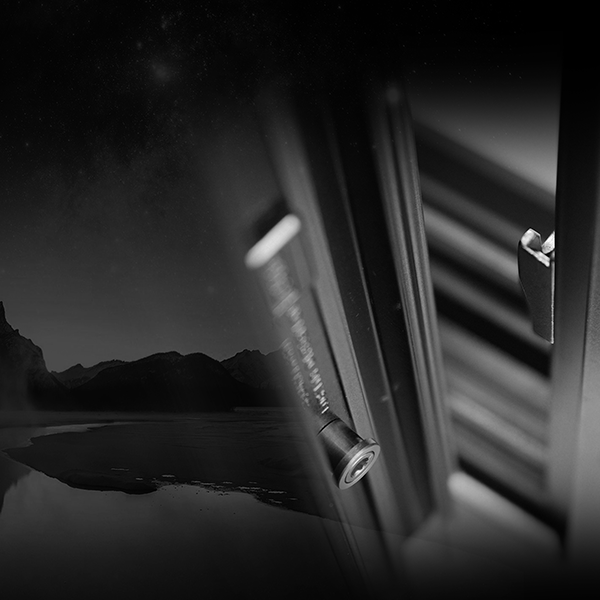

German Ruinuo transmission system
Anti-oxidation, wear-resistant, consumption-resistant, double locking point structure

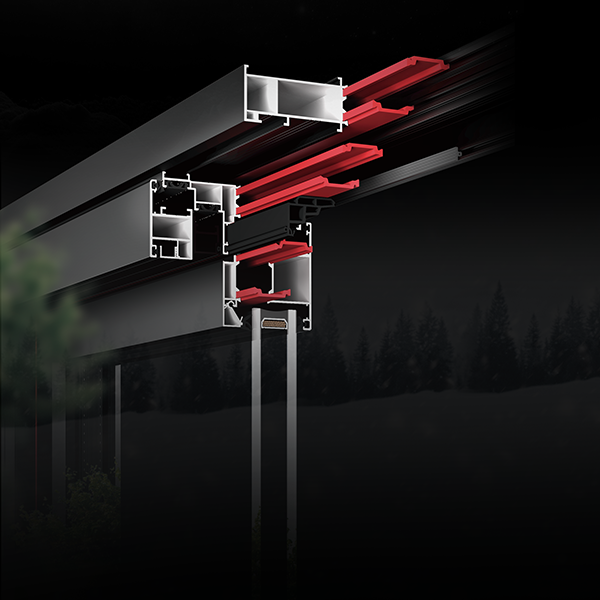

Extra-wide insulation strips
27MM extra-wide insulation strips, soundproofing, heat preservation and reducing condensation

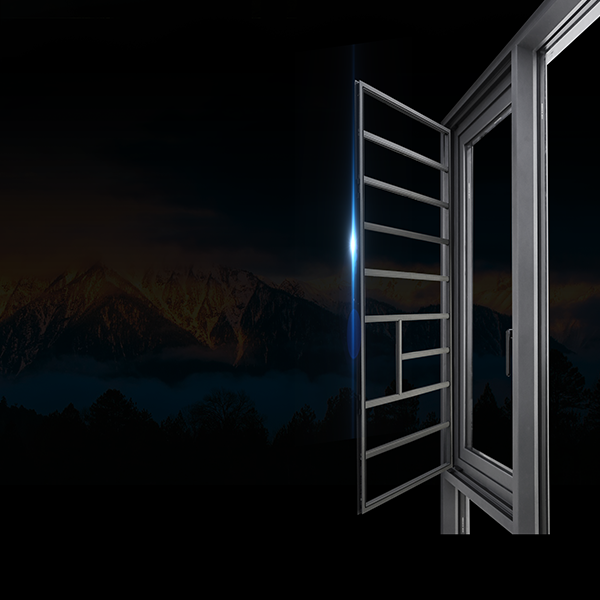

Optional opening guardrail
It is both anti-theft and for emergency escape, and has a child lock function

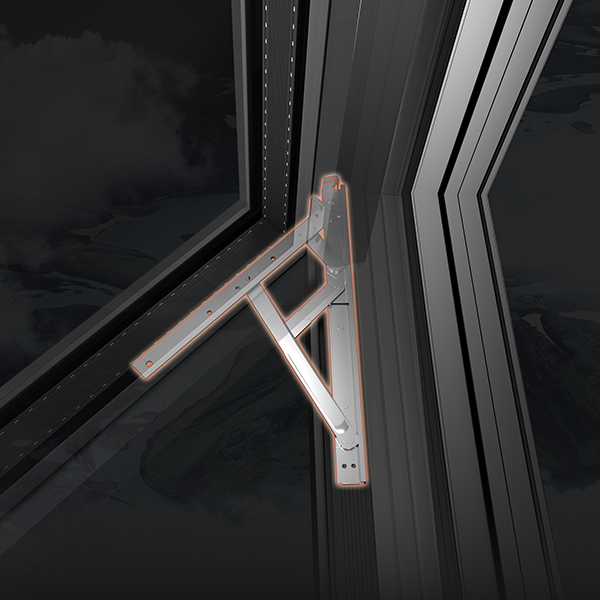

German GU hinges
The hinges are made by the century-old German GU company. They open and close smoothly, are weather-resistant, anti-oxidation, rust-free, and have strong load-bearing capacity.

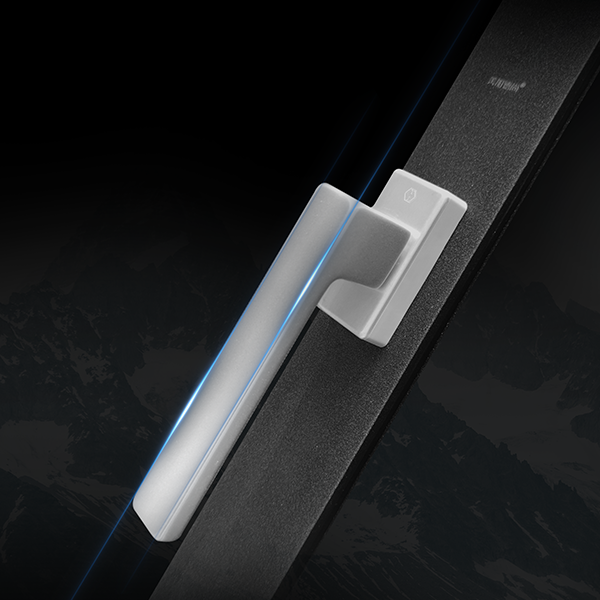

German HOPPE handle
Its ergonomic and smooth line design not only makes the grip comfortable, but also allows the window to open smoothly and without hindrance.

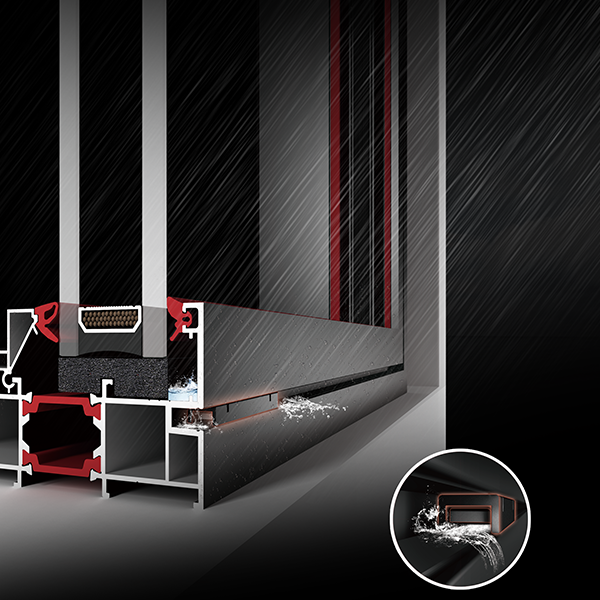

Concealed non-return drainage structure, rapid drainage, insect and blockage prevention
The 45-degree angle assembly process of window sash optimizes the material process and has better strength
Drainage outlet wind block structure
Effectively prevent wind whistling, backflow, and mosquitoes

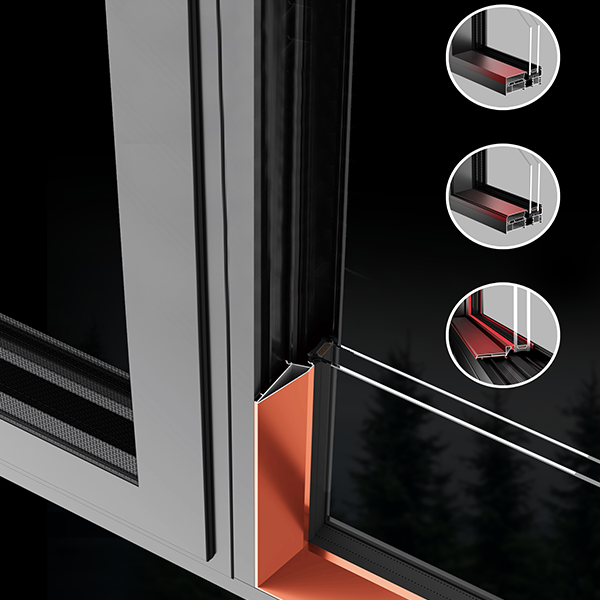

Standard oblique pressure line, exquisite in every inch
Optional crimping wire
Large crimping wire
Outer arc crimping wire

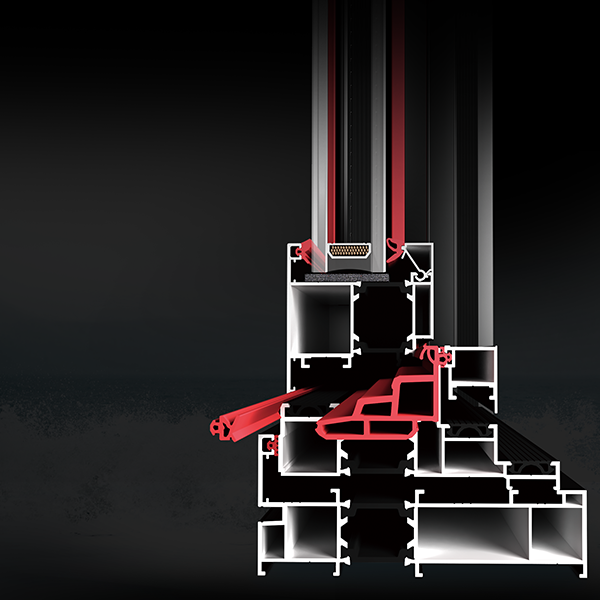

Three-layer sealing structure to resist wind and rain and freeze the beauty
Three-layer airtightness, three-layer sealing structure for opening sash, overall design of isobaric rubber strip in the middle, tight sealing, the whole window adopts Jiangyin Haida EPDM foam composite rubber strip, with super waterproof and heat insulation performance.
Strengthen components and enhance stability
Facing extreme weather such as typhoons and rainstorms, the primary consideration for large glass is "safety". In order to ensure that the entire glass does not shake or fall off, Megadeshan doors and windows use patented strengthening components. Users can freely adjust the screws according to the tightness of the large glass, thereby enhancing the stability and safety of the glass.
Adjustable reinforcement for indoor use
Reinforced aluminum gasket for outdoor use

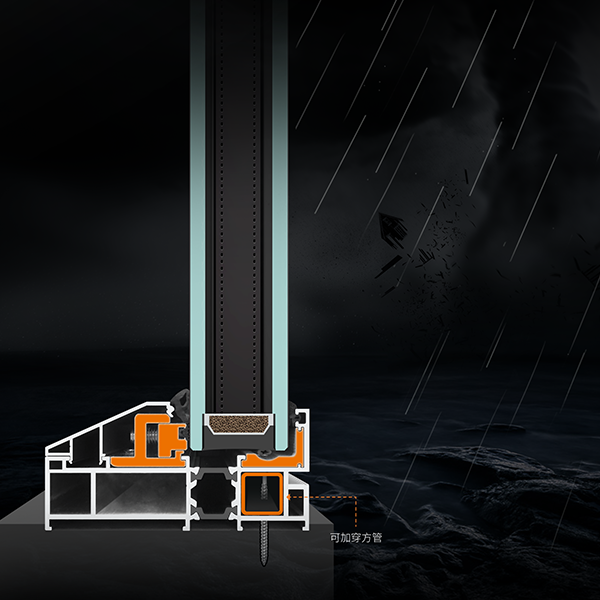

Square tube can be added
Seamless welding sealant
Sealing strips are seamlessly welded throughout the frame, without any interface, one-piece molding for better sealing, easy installation, and effective dust and water resistance

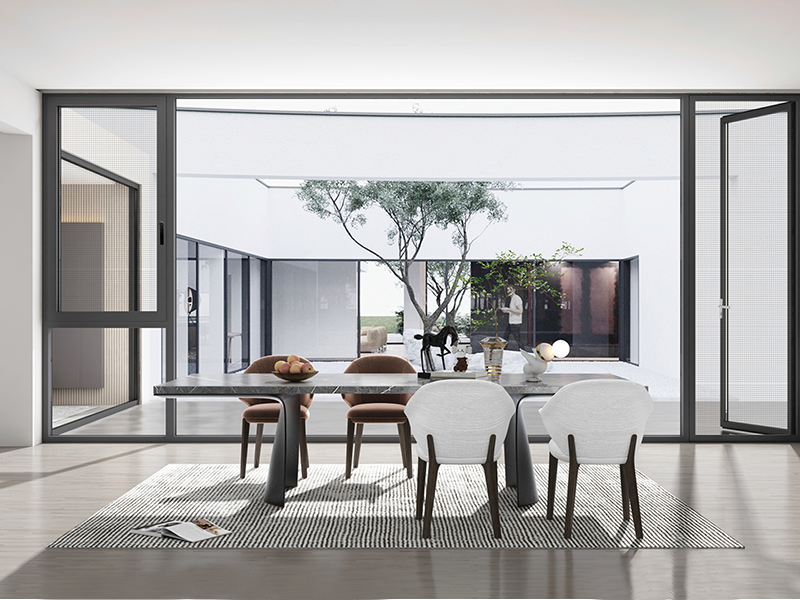

Doors and windows that young people prefer
