Screen casement window system Honor M16
Specifications
| Main wall thickness | 2.3mm |
| Glass configuration | 5mm+20A+5mm, optional 5mm+27A+5mm |
| Flat section of glass window sash | 75mm |
| Screen Sash Glide Track | 5lmm |
| Wall-mounted frame | 116mm |
| Hardware System | Germany VBH Door Handle ,Ruinuo Hardware System |
| Mesh Configuration | Black stainless steel high-definition mesh, optional foldable mesh |
| Pressed-line configuration | Standard curtain wall pressure line |
Function of the aluminum top hung window:
The opening configurations of black aluminium casement windows include the following options: Glass sash outward opening with inward-opening insect screen; Glass sash inward opening with outward-opening insect screen; Glass sash tilt-and-turn inward opening paired with outward-opening insect screen; Outward-opening glass sash without an insect screen
Application :The tingkap aluminium casement can be installed with a fixed left side or designed to open as a guardrail, offering versatile functionality and enhanced safety. With the tingkap aluminium casement, you can easily customize the window to suit your space while maintaining durability and style.
Window hardware：
The commercial aluminum casement windows come standard with the trusted VBH brand hardware, ensuring superior quality and performance. With the commercial aluminum casement windows, you can expect reliable operation and long-lasting durability, all thanks to the high-quality VBH components.
Hinge ：
Outward-opening windows are standard with German G-U, inward-opening and tilting windows are standard with Keneng; inward-opening windows are standard with Keneng.
The black casement windows can be made into window-and-door：
The black casement windows can be designed as window-door combinations (e.g., integrating with adjacent doors), outward-opening windows with integrated screens, double-leaf doors, mother-child outward-opening doors, and are standardly configured with VBH brand hardware handles
Screen ：
The aluminum top hung window offers an optional inward-opening screen, available in durable stainless steel 304 or 316 materials for enhanced protection. Additionally, the aluminum top hung window provides two choices for Venetian blinds: a glass hollow design with built-in magnetic blinds, allowing for greater customization and convenience in light control
Glass ：
The aluminum casement adopts a double-layer structure layout: 5mm tempered ultra white glass+20A hollow layer+5mm tempered glass. By optimizing the layout design, dual sound insulation and heat insulation are achieved, and the high air tightness structure effectively suppresses sound wave resonance, resulting in excellent sound insulation performance. Optional upgrade to 5mm+27A black hollow layer+5mm configuration, further enhancing acoustic layout efficiency

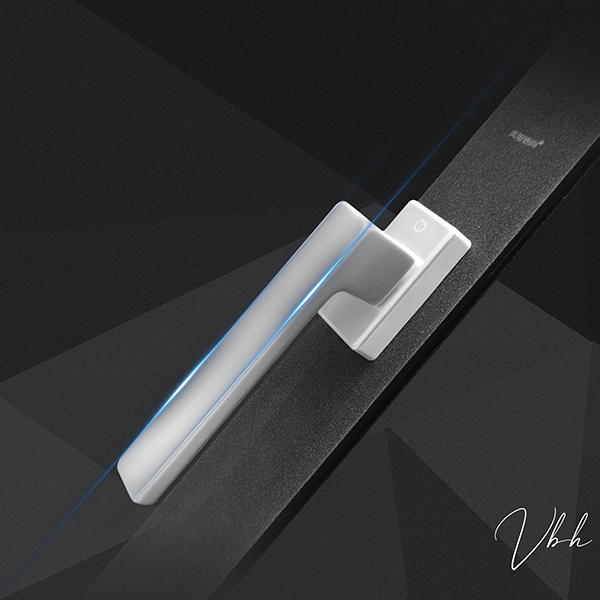

German HOPPE handle
Its ergonomic and smooth line design not only makes the grip comfortable, but also allows the window to open smoothly and without hindrance.

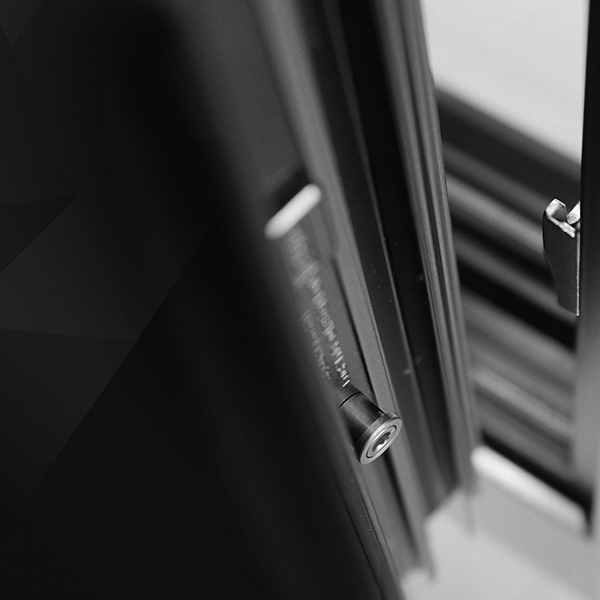

German Ruinuo transmission system
Anti-oxidation, wear-resistant, consumption-resistant, double locking point structure

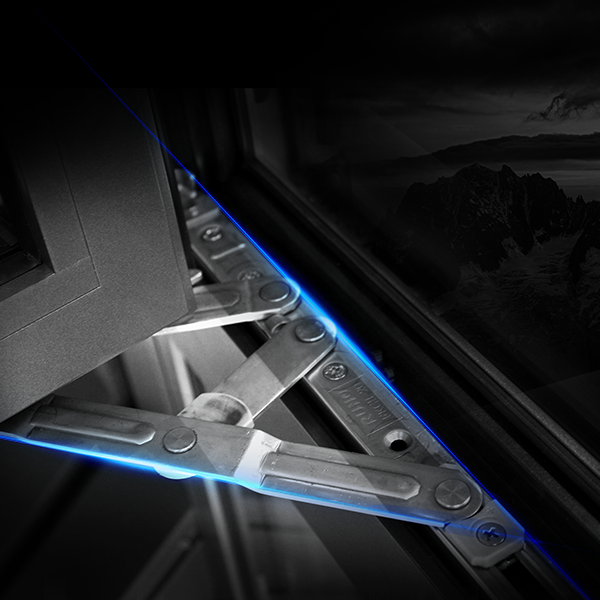

German Ruinuo hinge
Anti-oxidation, no rust, smooth opening and closing, strong load-bearing capacity

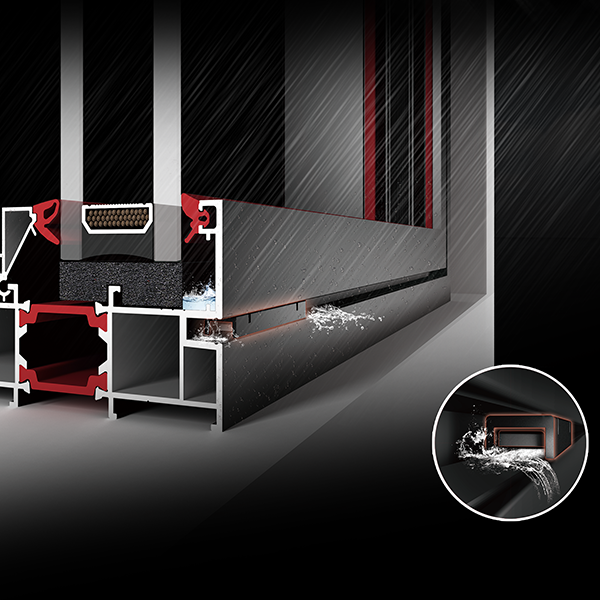

Concealed non-return drainage structure, rapid drainage, insect and blockage prevention
Drainage outlet wind block structure
Effectively prevent wind whistling, backflow, and mosquitoes

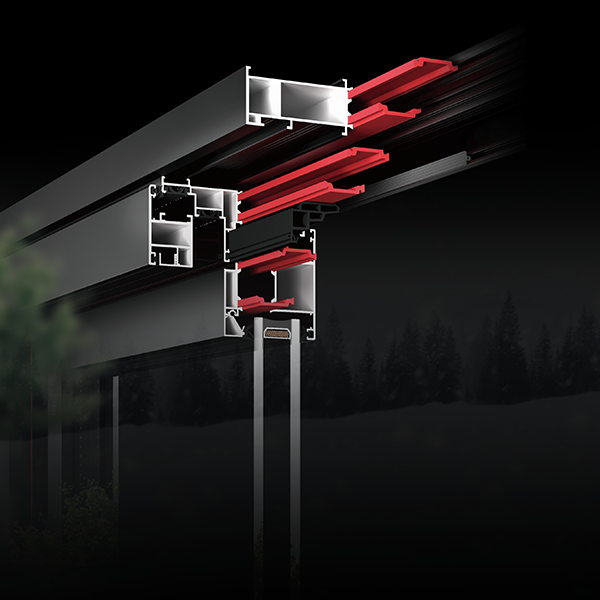

Extra-wide insulation strips
27MM extra-wide insulation strips, soundproofing, heat preservation and reducing condensation

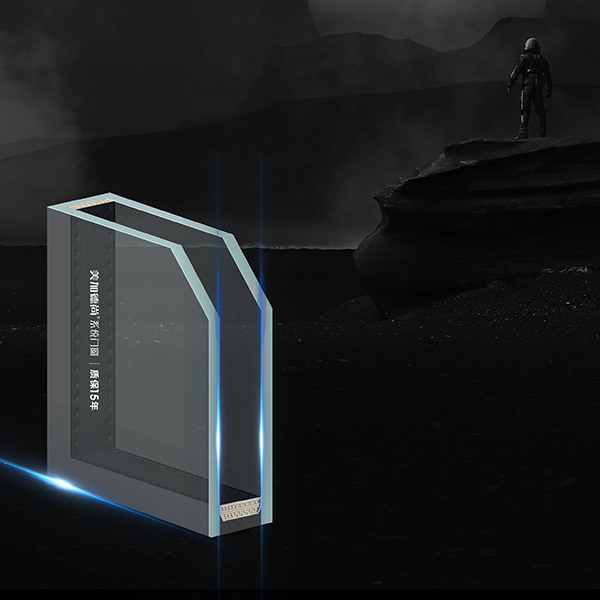

Optional 27A large insulating glass
Insulation, sound insulation, anti-fogging, UV protection

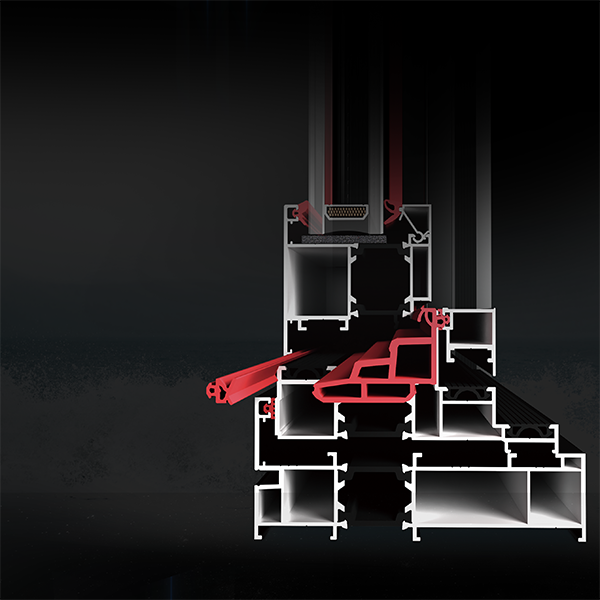

Three-layer sealing structure to resist wind and rain and freeze the beauty
Three-layer airtightness, three-layer sealing structure for opening sash, overall design of isobaric rubber strip in the middle, tight sealing, the whole window adopts Jiangyin Haida EPDM foam composite rubber strip, with super waterproof and heat insulation performance.

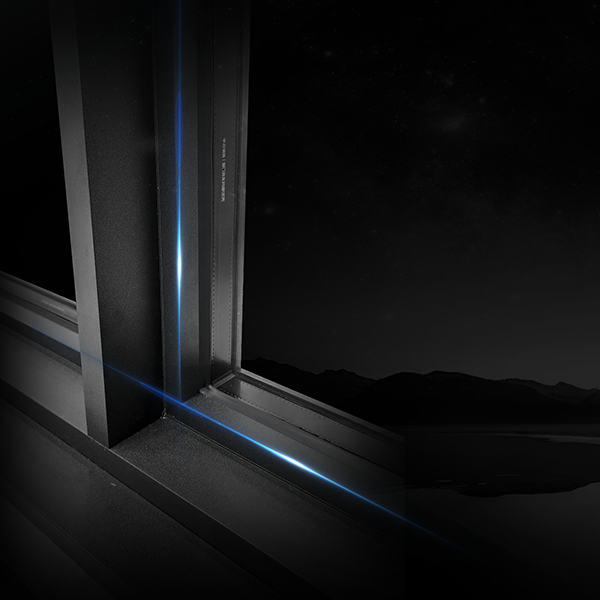

Standard curtain wall pressure line
Simple and smooth lines, easy viewing

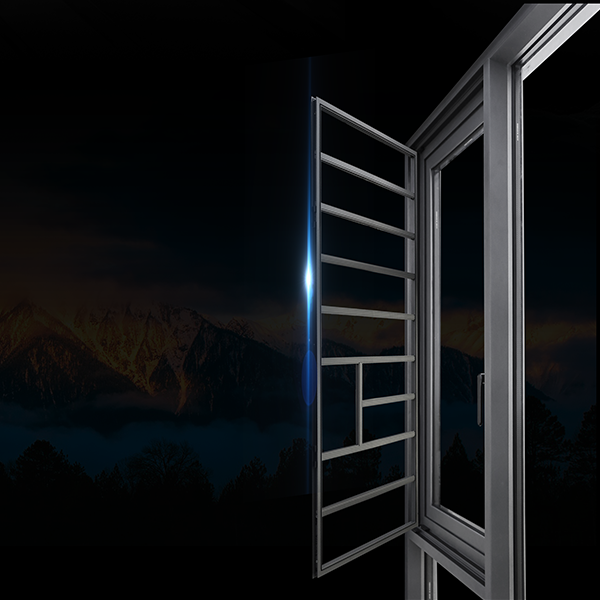

Optional opening guardrail
It is both anti-theft and for emergency escape, and has a child lock function
Seamless welding sealant
Sealing strips are seamlessly welded throughout the frame, without any interface, one-piece molding for better sealing, easy installation, and effective dust and water resistance

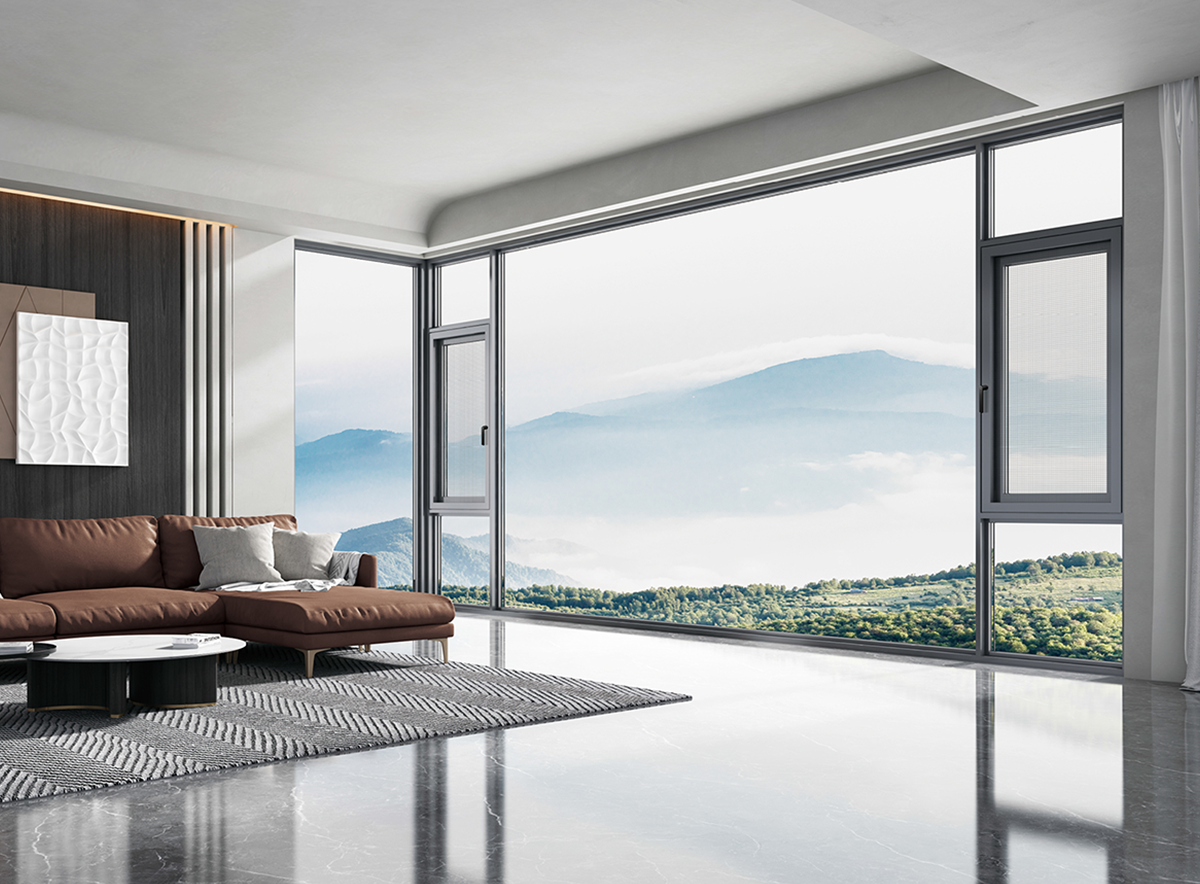

Doors and window designs favored by today's youth
Our this kind of tingkap aluminium casement are widely used in modern high-rise residential and commercial buildings, providing safe ventilation, weather resistance, and space-saving functionality while maintaining a sleek aesthetic desig
